Introduction

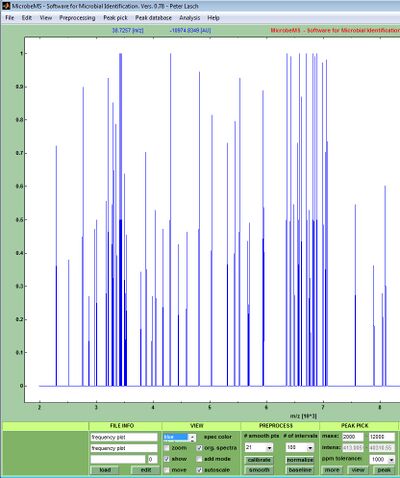

Peak frequency tests are useful for biomarker screening in ensembles of mass spectra exhibiting certain degree of similarity. These tests require pre-processed spectra with valid peak tables as inputs and are suitable to systematically determine the number of peaks and their relative abundance throughout the spectral m/z intervals. For peak frequency tests it is required to compile a mass spectral data set and to perform pre-processing including peak picking using standardized parameters. Peak frequency tests include a systematic evaluation for peak abundance in specific m/z segments which width is defined by a program-wide parameter dx (sometimes denoted as ppm tolerance). The output of a peak frequency test is a table in which ranked absolute and relative peak frequency values are listed. In addition, the relative peak frequency is plotted for each m/z segment (see screenshot below).

Performing a peak frequency test

1. Load the mass spectral data files via the load spectra (Bruker data file format),
   import spectra from mzXML data, or the load MS multifile options of the File pulldown menu.
2. Perform spectral pre-processing and peak detection.
3. Note that spectra selected for peak frequency tests are required to contain valid peak tables.
   Spectra without associated peak table cannot be processed.
4. Select the respective mass spectra in the listbox at the top left corner (the listbox is labeled by
   MicrobeMS spectra ID`s). To select multiple spectra hold the <shift> key while selecting. Alternatively,
   frequency tests can be also carried out from labeled spectra, i.e. from spectra with a class
   assignment. Labelling, or class assignment, can be carried out by selecting the appropriate
   spectra and choosing class assignments --> class X from the Edit pulldown menu.
5. If necessary define the parameter dx (ppm tolerance) which has a default value of dx = 1000
   (relative ppm units). The parameter dx defines the width of m/z segments in which spectra are
   divided when analyzing peak frequencies. Peaks found in the same m/z segment are considered identical
   while mass peaks in different segments are considered different peaks. An spectral segment at the
   position x has width of x * dx/10^6 and ranges from [x*(1-dx/(2*10^6))] to [x*(1+dx/(2*10^6))], for
   example from m/z 1999 to 2001 if x = 2000 (m/z) and dx = 1000.
6. When finished select peak frequency plots from the Analysis pulldown menu. Choose
   options from selection or from class X if the peak frequency test should involve selected
   spectra or spectra with an appropriate class labelling, respectively.

Output of a peak frequency test

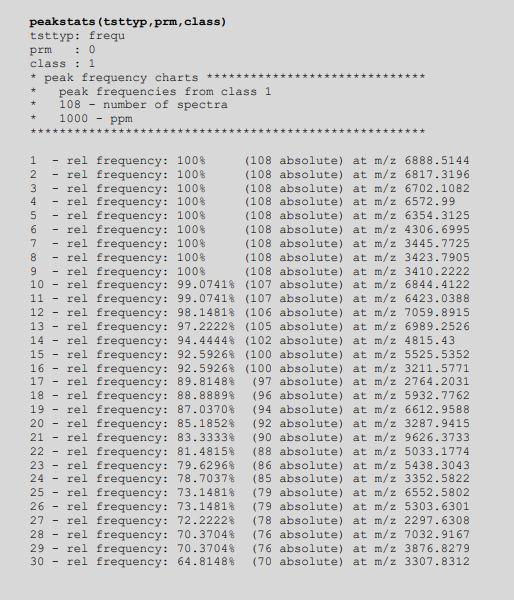

Example of a peak frequency table taken from the log file of MicrobeMS:

   peakstats(tsttyp,prm,class)
   tsttyp: frequ
   prm   : 0
   class : 1
   * peak frequency charts ******************************
   *   peak frequencies from class 1
   *   108 - number of spectra
   *   1000 - ppm
   ******************************************************

  1 - rel frequency: 100% (108 absolute) at m/z 6888.5144
  2 - rel frequency: 100% (108 absolute) at m/z 6817.3196
  3 - rel frequency: 100% (108 absolute) at m/z 6702.1082
  4 - rel frequency: 100% (108 absolute) at m/z 6572.99
  5 - rel frequency: 100% (108 absolute) at m/z 6354.3125
  6 - rel frequency: 100% (108 absolute) at m/z 4306.6995
  7 - rel frequency: 100% (108 absolute) at m/z 3445.7725
  8 - rel frequency: 100% (108 absolute) at m/z 3423.7905
  9 - rel frequency: 100% (108 absolute) at m/z 3410.2222
  10 - rel frequency: 99.0741% (107 absolute) at m/z 6844.4122
  11 - rel frequency: 99.0741% (107 absolute) at m/z 6423.0388
  12 - rel frequency: 98.1481% (106 absolute) at m/z 7059.8915
  13 - rel frequency: 97.2222% (105 absolute) at m/z 6989.2526
  14 - rel frequency: 94.4444% (102 absolute) at m/z 4815.43
  15 - rel frequency: 92.5926% (100 absolute) at m/z 5525.5352
  16 - rel frequency: 92.5926% (100 absolute) at m/z 3211.5771
  17 - rel frequency: 89.8148% (97 absolute) at m/z 2764.2031
  18 - rel frequency: 88.8889% (96 absolute) at m/z 5932.7762
  19 - rel frequency: 87.037% (94 absolute) at m/z 6612.9588
  20 - rel frequency: 85.1852% (92 absolute) at m/z 3287.9415
  21 - rel frequency: 83.3333% (90 absolute) at m/z 9626.3733
  22 - rel frequency: 81.4815% (88 absolute) at m/z 5033.1774
  23 - rel frequency: 79.6296% (86 absolute) at m/z 5438.3043
  24 - rel frequency: 78.7037% (85 absolute) at m/z 3352.5822
  25 - rel frequency: 73.1481% (79 absolute) at m/z 6552.5802
  26 - rel frequency: 73.1481% (79 absolute) at m/z 5303.6301
  27 - rel frequency: 72.2222% (78 absolute) at m/z 2297.6308
  28 - rel frequency: 70.3704% (76 absolute) at m/z 7032.9167
  29 - rel frequency: 70.3704% (76 absolute) at m/z 3876.8279
  30 - rel frequency: 64.8148% (70 absolute) at m/z 3307.8312
