Introduction
This function performs twosamples ttests in each segment of the MALDITOF mass spectra using peak tables as inputs. ttests are useful for biomarker screening in ensembles of mass spectra exhibiting certain degree of similarity. A twosamples ttest in a given m/z segment returns a test decision for the null hypothesis H(0) that the peak intensity data in class I and class II come from independent random samples from normal distributions with equal means and variances. The alternative hypothesis H(1) is that the peak intensity data come from populations with unequal means.
See also ttest (Wikipedia)
Parameter of the twosamples ttest
 m/z range: boundaries of the m/z region in which the ttests are performed
 α: significance level of the ttests
 dx (ppm): a parameter defining the width and the number of the m/z spectra segments. For example, a spectral segment centered at the position x covers a m/z interval of the width x * dx/10^6. The boundaries of the spectra segments are defined by [x*(1dx/(2*10^6))] and [x*(1+dx/(2*10^6))], respectively. For values of x = 2000 (m/z) and dx = 1000, the width of the respectice segment is 2 and the m/z values of the boundaries are 1999 and 2001.
 intensity: defines if barcode spectra or peak weighting factors are utilized as test inputs
 show histogram: provides a histogram of the test outputs (pvalues, tvalues, etc.) and gives also the mean, median and the standard deviation of the test variables.
Performing a serial ttest
1. Load the mass spectral data files via the load spectra (Bruker data file format), import spectra from mzXML data, or the load MS multifile options of the File pulldown menu.
2. Twosamples ttests are carried out from labeled spectra, i.e. from spectra with a class assignment. To perform the test label two groups of spectra as class 1 and as class 2, respectively. Labelling, or class assignment, can be carried out by selecting the appropriate spectra and choosing class assignments > class X from the Edit pulldown menu.
3. The ttest routine always starts from original MALDITOF mass spectra, i.e. spectral preprocessing and peak detection is carried out automatically using predefined parameters. Existing preprocessed spectra and predefined peak tables are ignored by the test routine.
4. Define test parameter, such as α (significance level), the m/z range and dx (ppm) which has a default value of 1000 (relative, in ppm). The parameter dx defines the width of m/z segments in which spectra are divided during the test. Peaks found in the same m/z segment are considered identical while mass peaks in different segments are considered different peaks.

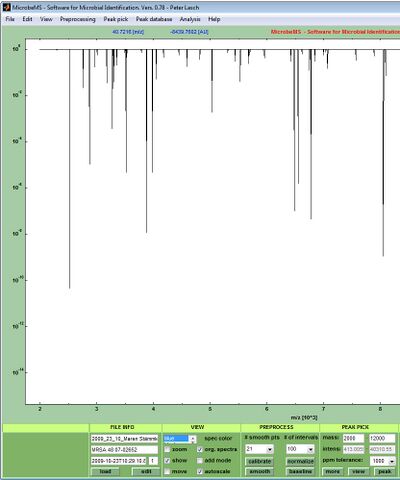

5. When finished select ttest from the Analysis pulldown menu. Choose options plot decision for H(0), plot pvalues or plot tvalues, to obtain the respective outputs of the ttests.
Output of an univariate ttest
Example of the output from a serial ttest taken from the log file of MicrobeMS:
peakstats(tsttyp,prm,class) tsttyp: ttest prm : 2 class : 0 ****************************************************** * univariate ttests * pvalue ****************************************************** number of spectra of class 1: 53 number of spectra of class 2: 55 start mass : 2000 m/z end mass : 12000 m/z alpha : 0.0001 allowed ppm : 1000 use peak intensities [0(NO)/1(YES)]: 0 #1, pvalue 4.4406e11 at m/z = 2518.0283 #2, pvalue 1.1177e09 at m/z = 8035.9213 #3, pvalue 1.1547e08 at m/z = 3876.8279 #4, pvalue 4.633e08 at m/z = 6772.547 #5, pvalue 1.0154e07 at m/z = 6481.3235 #6, pvalue 1.5417e06 at m/z = 6552.5802 #7, pvalue 4.7364e06 at m/z = 3519.6031 #8, pvalue 4.7364e06 at m/z = 3983.3741 #9, pvalue 1.0863e05 at m/z = 2871.5769 #10, pvalue 0.00036899 at m/z = 3277.395 #11, pvalue 0.0019455 at m/z = 5033.1774 #12, pvalue 0.021796 at m/z = 2764.2031 #13, pvalue 0.035168 at m/z = 3178.2104 #14, pvalue 0.0398 at m/z = 3307.8312 #15, pvalue 0.040363 at m/z = 5525.5352 #16, pvalue 0.053241 at m/z = 4046.9202 #17, pvalue 0.073176 at m/z = 8090.9843 #18, pvalue 0.12269 at m/z = 6744.2579 #19, pvalue 0.14863 at m/z = 7059.8915 #20, pvalue 0.17529 at m/z = 2967.2566 #21, pvalue 0.18459 at m/z = 4591.731 #22, pvalue 0.2057 at m/z = 3352.5822 #23, pvalue 0.23803 at m/z = 5671.5438 #24, pvalue 0.30801 at m/z = 5438.3043 #25, pvalue 0.31058 at m/z = 6423.0388 #26, pvalue 0.31058 at m/z = 6844.4122 #27, pvalue 0.33198 at m/z = 7566.6528 #28, pvalue 0.37979 at m/z = 4815.43 #29, pvalue 0.43903 at m/z = 5953.9217 #30, pvalue 0.45171 at m/z = 4177.5814
